At the end of a wafer clean, the surface may look perfect to the eye and still carry the contamination that matters most. A faint organic film, trace ionic carryover, poorly rinsed surfactant, or particles released from an incompatible chemistry can remain invisible until they affect electrical performance, lithography, deposition, bonding, or inspection yield. For operators working close to the tool, that uncertainty is stressful: a cleaning step is supposed to reduce risk, not create a new source of variation.
Selecting low residue semiconductor wafer cleaners is therefore not simply a matter of finding a product that removes visible soils. The cleaner must remove the target contamination and then leave the wafer surface, rinse system, and process hardware in a condition suitable for the next critical step. This requires a practical view of chemistry, rinse behavior, materials compatibility, handling discipline, and verification methods.
For high-purity processing environments, the best choice is usually the cleaner that fits a defined process window—not necessarily the most aggressive formulation or the one with the broadest cleaning claim. This guide helps operators and process teams evaluate that fit before a chemical reaches routine production.
Terms such as “precision cleaner,” “electronic cleaner,” and “residue-free cleaner” can be useful starting points, but they do not describe the actual soil on a wafer. Before comparing products, identify what needs to be removed and where it originates. The source often determines the appropriate chemistry more reliably than a general product category.
Common contamination classes include:
A particle-focused clean may depend heavily on wetting, controlled agitation, filtration, and rinse hydraulics. A stubborn organic film may require a different balance of solvent power, alkalinity, surfactancy, temperature, and contact time. If ionic residue is the central concern, the cleanliness of the water system and the ability to rinse the formulation completely may be more important than raw detergency.
Operators should also ask a simple but revealing question: Is the residue coming from the wafer process, the cleaning chemistry, the tool, or the rinse sequence? Replacing a cleaner will not solve a recurring issue caused by exhausted filters, contaminated tanks, improper bath turnover, poor wafer spacing, or a compromised final rinse.
In semiconductor cleaning, low residue is not a vague promise of a clean-looking surface. It means the formulation is designed and controlled to minimize nonvolatile residues, ionic contaminants, problematic additives, and difficult-to-rinse components that could remain after the intended cleaning cycle.
For the operator, this translates into several practical expectations. The cleaner should disperse or solubilize the target soil without producing persistent foam or deposits. It should rinse away under the available equipment conditions. It should not leave a film that changes surface energy, interferes with coating adhesion, causes water-break behavior, or produces inspection anomalies. Its use should also be compatible with the required final rinse quality and drying method.
Residue risk is rarely determined by one ingredient alone. Surfactants can improve wetting and particle lift, yet some may be harder to rinse than others. Solvents can dissolve organics effectively, but may affect plastics, seals, adhesives, or wafer-mounted materials. Chelating agents can assist with metal removal, while their concentration and rinse behavior still need to be controlled. The right formulation is a balance between cleaning strength and clean departure.

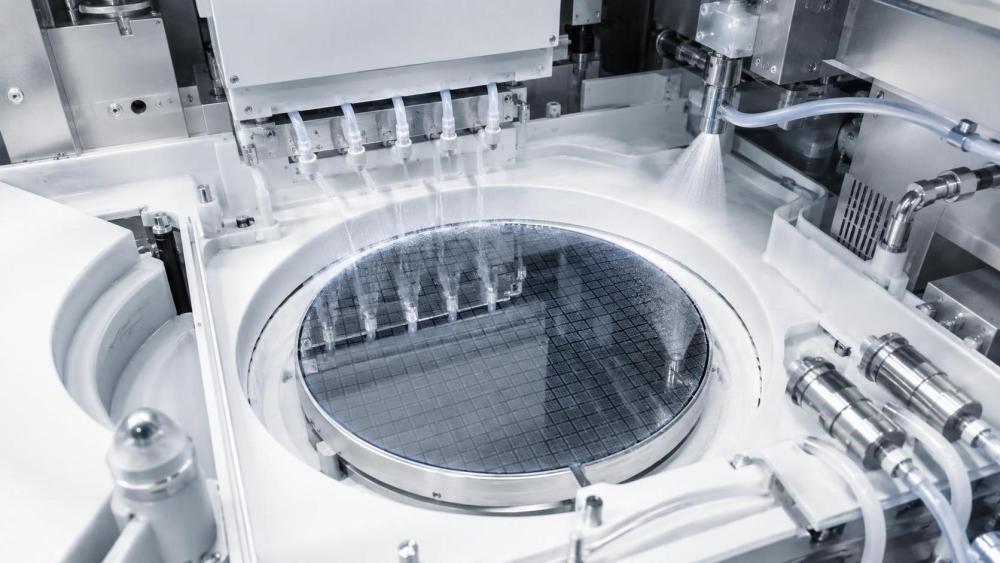

A wafer does not experience the cleaner in isolation. It moves through loading, pre-rinse or pre-wet, chemical exposure, agitation, displacement, multiple rinses, drying, transfer, and inspection. A chemistry that performs well in a laboratory beaker may behave differently in a spray tool, single-wafer processor, immersion tank, megasonic system, or manual-assisted station.
When screening low residue semiconductor wafer cleaners, map the complete sequence and define where the cleaning chemistry must work hardest. Consider the following process questions:
This sequence-based view prevents a common mistake: blaming the cleaning chemistry for residue that appears only because the rinse capacity is insufficient. In many cases, a formulation change and a rinse adjustment should be evaluated together.
Wafer cleaning is rarely performed on a simple, bare silicon surface. Operators may be handling patterned wafers, oxidized surfaces, compound semiconductors, metal stacks, dielectric layers, fragile low-k structures, bonded assemblies, or wafers carrying temporary protective materials. Each surface can respond differently to pH, oxidation potential, solvent exposure, temperature, and mechanical action.
A cleaner selected for one area of the fab or assembly flow should not automatically be transferred to another. A formulation that removes machining oil from an unpatterned substrate may be unsuitable for a surface awaiting high-resolution coating. Likewise, a chemistry that is acceptable before a robust thermal step may be inappropriate immediately before deposition, bonding, or sensitive metrology.
Ask suppliers and internal process owners for compatibility guidance that is specific to the actual wafer stack and equipment materials. Review possible interaction with silicon, native oxide, thermal oxide, nitrides, metals, glass, ceramics, polymers, photoresist-related materials, and carrier components. Do not overlook the tool itself: valves, tubing, filters, pump components, O-rings, tank linings, and spray nozzles must tolerate the chemistry over repeated cycles.
Where the next process step is especially sensitive, evaluate not only whether the wafer is clean, but whether its surface condition is appropriate. Surface energy, hydrophilicity, oxide condition, and trace ionic background can all influence downstream performance.
A disciplined trial does not need to be unnecessarily complicated, but it should be controlled. Start with representative wafers or approved test coupons carrying the contamination of concern. Use the intended equipment wherever possible, because flow pattern, temperature uniformity, and rinse configuration strongly influence the outcome.
For critical applications, verification may involve particle inspection, surface analysis, contact-angle assessment, ionic contamination testing, microscopy, or downstream process checks. The appropriate method depends on the wafer and facility. The key is to select measurements that reveal the failure mode you are trying to prevent, rather than collecting data that looks impressive but does not guide a decision.
When residue problems appear, there is a natural temptation to use a stronger chemistry, raise the concentration, extend exposure, or increase mechanical energy. These actions may improve immediate soil removal while introducing other risks: surface attack, pattern damage, chemical entrapment, material degradation, excessive foaming, redeposition, or a more demanding rinse burden.
Reliable cleaning is usually achieved through balance. The chemistry should be strong enough to release the soil, but controlled enough to protect the wafer and leave the process quickly. This is why a low-residue formulation with predictable rinse behavior can be a better fit than an aggressive general-purpose cleaner.
Another frequent misconception is that more surfactant always means better cleaning. Wetting agents are valuable when they improve contact with small features or lift hydrophobic soils. Yet excessive or poorly matched surfactant systems may complicate rinsing and leave surface-active traces. The question is not whether a cleaner contains surfactants; it is whether the full formulation performs cleanly under the actual rinse conditions.
In a high-purity environment, product selection should include more than a technical data sheet. Operators and quality teams need clear information that supports safe, repeatable use. Review the safety data sheet, recommended dilution and operating conditions, storage limits, material compatibility notes, lot identification, packaging design, and guidance on bath maintenance or disposal.
For critical processes, ask whether the supplier can provide information relevant to impurity control, nonvolatile residue considerations, filtration recommendations, and quality consistency. The exact documentation requirements vary by site and application, but the principle remains the same: a cleaner is easier to manage when its intended use, limits, and control points are clearly understood.
Packaging also deserves attention. A well-formulated cleaner can still become a contamination concern if transferred through unsuitable containers, exposed to poor handling practices, or stored beyond recommended conditions. Clean chemical handling, labeled transfer equipment, controlled dispensing, and trained operators are part of the low-residue strategy.
Once a cleaner is selected, consistent execution becomes as important as the chemistry itself. Use approved concentration checks, defined bath-change criteria, and clear records for make-up, replenishment, filtration, temperature, and rinse conditions. If there is an upset—such as a prolonged idle period, abnormal foam, visible bath contamination, water-quality alarm, or changed drying appearance—treat it as a process signal rather than a minor inconvenience.
Operators are often the first people to notice subtle changes: a different drain pattern, unusual odor, slower break-up of foam, altered wafer appearance, or a shift in tool behavior. Creating a clear route for reporting those observations can prevent a small deviation from becoming a wider yield issue.
For teams comparing options, FCAS recommends framing the decision around the entire application: contamination type, wafer stack, equipment conditions, rinse capacity, downstream sensitivity, documentation needs, and routine handling realities. That approach makes the search for low residue semiconductor wafer cleaners more practical and less dependent on generic claims.
The most suitable cleaner is the one that removes the real soil, rinses predictably, respects the wafer and tool materials, and remains controllable from one production cycle to the next. In critical semiconductor work, that quiet consistency is often what protects the process most effectively.
