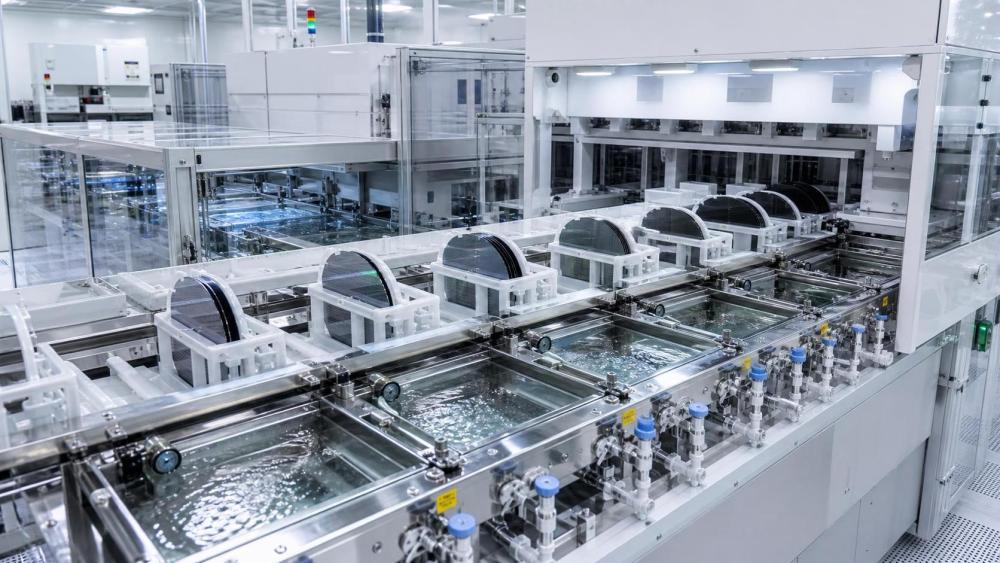

How Bulk Semiconductor Wafer Cleaners Improve Yield and Defect Control

If you are evaluating bulk semiconductor wafer cleaners, the real question is not whether they can clean a wafer. Most systems can. What matters is whether they can remove particles, organic films, metallic residue, and process carryover in a stable, repeatable way without adding new defects or damaging increasingly delicate device structures. That is where yield is won or lost. A cleaner that looks acceptable in a simple demo can still become a source of recurring defect excursions once it is placed in high-volume production.

For technical reviewers, the value of a bulk cleaning platform usually comes down to three things: defect density reduction, process consistency across lots, and compatibility with the rest of the line. Those sound obvious, but they are often judged too loosely. In practice, the cleaning step sits between expensive upstream processing and even more expensive downstream exposure, deposition, etch, or packaging stages. If contamination survives here, the cost multiplies later.

Why yield problems often trace back to cleaning stability

Many people still think wafer cleaning is a support utility rather than a yield-critical process step. That view is outdated. On modern lines, the margin for surface contamination is narrow, and the type of contamination matters almost as much as the amount.

A wafer may carry particles from prior handling, residual photoresist fragments, slurry remnants after CMP, native oxide concerns, metallic ions, organics from process chemistry, or water marks created during drying. Each of these can trigger a different failure mode. Some defects cause immediate electrical failure. Others create latent reliability issues that are harder to trace because they only appear after later thermal or deposition steps.

Bulk semiconductor wafer cleaners improve yield when they reduce this variability at scale. The key phrase is “at scale.” A process that cleans ten wafers well in a test run is not automatically robust across shifts, operators, bath ages, and production loads.

In plain terms: good cleaning protects pattern fidelity, film adhesion, contact integrity, and downstream process repeatability. Poor cleaning turns into rework, scrap, and unexplained excursion analysis.

What bulk semiconductor wafer cleaners actually control

At equipment level, these systems are expected to manage more than simple chemical contact. They control how chemistry reaches the surface, how particles are detached, how residues are dissolved or displaced, how rinsing is completed, and how drying avoids watermark or redeposition issues.

The most effective platforms usually combine several control points:

• Chemical concentration stability
• Bath life and contamination carryover management
• Temperature uniformity
• Megasonic or other energy-assisted cleaning control, where applicable
• Rinse water purity and flow behavior
• Drying performance that minimizes stains and particle redeposition
• Wafer handling that avoids edge damage and backside contamination

That is why equipment comparison based only on throughput or nominal chemistry compatibility is incomplete. Two systems may claim support for similar cleaning recipes, yet produce very different defect outcomes because fluid dynamics, filtration, recirculation design, and drying behavior are not equal.

A short answer many evaluators need is this: bulk semiconductor wafer cleaners improve yield by lowering particle and residue-related defects in a repeatable production environment, not simply by making wafers look clean after one cycle.

Defect control is not just about particle removal

Particle counts get most of the attention because they are measurable and easy to discuss in meetings. But in real semiconductor manufacturing, defect control is broader.

For example, a cleaner may perform well on visible particle removal but leave trace metallic contamination that affects gate integrity or thin-film behavior later. Another system may show strong organic residue removal but create pattern damage on fragile topography if the mechanical or acoustic energy is too aggressive. There are also cases where the chemistry is effective, but rinse inefficiency causes cross-contamination from previous lots.

This is where technical evaluation gets more serious. You are not looking for the strongest cleaning action in isolation. You are looking for the best balance between removal efficiency and surface protection.

Common defect categories influenced by cleaning include:

• Added particles from bath contamination, drying, or wafer handling
• Residual films that interfere with deposition, etch, or bonding
• Metallic contamination that affects electrical performance
• Pattern collapse or surface damage on sensitive structures
• Water marks, stains, and chemical residues after rinse-dry steps
• Backside contamination that later transfers to tools or chucks

One recurring mistake is to evaluate cleaners mainly against one dominant defect type from the current process issue. That may solve today’s problem while creating a new one in another layer or product family.

What technical evaluators should look at before approving a system

In many organizations, the cleaner is assessed by process engineering, facilities, quality, and procurement at the same time. That creates a familiar problem: one team focuses on chemistry compatibility, another focuses on cost of ownership, and another focuses on defect data. The decision becomes fragmented.

A better evaluation starts with a narrower set of questions.

First, what contamination types are actually driving yield loss in your line? If this is not clearly defined, the cleaner may be over-specified in one area and weak in the one that matters.

Second, how sensitive are your wafers to mechanical stress, chemical attack, or drying marks? This matters more for advanced nodes, thinner wafers, compound semiconductors, MEMS, and devices with high-aspect-ratio structures.

Third, how stable is the process window? A system that requires constant manual tuning may still pass qualification but become difficult to manage in volume production.

From there, a practical assessment usually includes:

• Defect reduction data before and after cleaning
• Repeatability across multiple lots and bath age conditions
• Compatibility with wafer materials, feature geometry, and existing chemistries
• Rinse and drying performance under actual fab water quality requirements
• Maintenance burden, chemical consumption, and filtration replacement frequency
• Contamination control in cassettes, carriers, tanks, and transfer paths
• Traceability, recipe control, alarms, and integration with factory automation

That last point is often underestimated. A cleaner that performs well technically but offers poor recipe governance or weak event logging can become difficult to control under audit and scale-up conditions.

Where evaluation teams often get misled

One of the most common misunderstandings is to treat cleaning chemistry and cleaning equipment as separate decisions. In reality, they are tightly linked. The same formulation can behave differently depending on tank design, recirculation, nozzle arrangement, acoustic delivery, and rinse sequence.

This is one reason industry platforms such as FCAS are useful to evaluators working across industrial cleaning and high-purity process environments. Not because they replace tool qualification, but because they help teams compare cleaning material behavior, surfactant roles, residue risks, compatibility issues, and supply-side considerations in a more structured way before moving into plant-level trials.

Another trap is overvaluing headline throughput. Higher throughput only helps if cleaning quality remains stable at that load. If bath contamination increases too quickly, if drying becomes uneven, or if defect counts drift across long runs, the nominal productivity gain may disappear in rework and yield loss.

There is also the issue of “acceptable” demo data. Vendor trials are useful, but they are usually cleaner than the fab reality. Real production includes variation in incoming contamination, line stoppages, chemical aging, operator differences, and maintenance intervals. A serious review should ask for evidence under stressed conditions, not just best-case conditions.

Not every process benefits equally from the same cleaner design

This is where experience matters. Some bulk cleaning systems are well suited to mature-node silicon processes with established wet benches and predictable contamination loads. Others are better aligned with advanced process integration where particle budgets are tighter and wafer surfaces are more delicate.

If your line handles fragile structures, aggressive cleaning energy can become a liability. If your main issue is heavy slurry residue or stubborn post-etch byproducts, a gentler system may preserve surfaces but miss the contamination target. The right answer depends on the failure mechanism, not the marketing language around “high efficiency” or “precision cleaning.”

It is also important to separate batch productivity from actual process fit. Bulk tools make economic sense where lot-based cleaning supports throughput and cost targets. They may be less suitable where single-wafer process control is required for especially sensitive structures or highly customized steps. That does not make bulk cleaning inferior. It simply means the use case must match the integration strategy.

How better cleaning supports longer-term manufacturing control

Yield improvement gets the attention, but experienced evaluators usually look one step further. A capable cleaning platform reduces the frequency of unexplained defects, improves consistency in downstream tools, and lowers the burden on root-cause analysis. That matters because defect excursions consume engineering time far beyond the cleaning area itself.

When cleaning is under control, fabs usually see benefits in:

• More predictable inline defect trends
• Lower rework rates
• Better downstream film and interface consistency
• Reduced tool contamination transfer
• More stable process qualification over time

These gains are rarely caused by one dramatic change. More often, they come from fewer small failures accumulating across the line.

That is why the best technical evaluations do not stop at “does it clean?” They ask whether the system can keep cleaning well after months of operation, with the same defect discipline, the same documentation quality, and the same control over chemistry and rinse purity.

What to confirm before making a final decision

Before approving a bulk wafer cleaning platform, confirm four things internally.

• Your target defect modes are clearly defined and measurable.
• The qualification plan includes normal and stressed production conditions.
• The chemistry, materials compatibility, and waste handling requirements are understood.
• The supplier can support process control, documentation, and long-term service needs, not only installation.

That last point matters more than many teams expect. In high-purity manufacturing, cleaning performance is tied to consumables, maintenance discipline, and contamination management practices. A strong tool with weak support can still become a weak production asset.

For technical evaluators, the most useful mindset is simple: judge bulk semiconductor wafer cleaners by their effect on stable defect control over time, not by isolated cleaning claims. When that standard is applied properly, it becomes much easier to distinguish a tool that merely runs from one that genuinely protects yield.

FAQ

Are bulk semiconductor wafer cleaners always better for high-volume production?
Not always. They are often efficient for lot-based manufacturing, but the right choice depends on contamination type, wafer sensitivity, and whether batch processing fits the device architecture.

What is the biggest mistake during evaluation?
Looking only at initial particle reduction. Residual chemistry, metallic contamination, drying behavior, and repeatability across bath life can be just as important.

Can the same cleaning system work for different wafer materials?
Sometimes, but it should not be assumed. Silicon, compound semiconductors, MEMS structures, and thin wafers can respond very differently to chemistry and mechanical cleaning energy.

Should buyers focus more on chemistry or equipment?
Both must be evaluated together. Cleaning chemistry performance depends heavily on how the equipment delivers, refreshes, rinses, and dries the wafer.
